Ready to go
5m cable is included in the box. Connect the included cable to the DSP's SCP.
✓ Cable included
For Helix, Brax & Match DSPs
Cuore One
Premium In-Car DSP Controller
The only part of your system you actually touch. Control, feedback, and real-time voltage always in view.
€449,00
FREE SHIPPING · LIMITED FIRST BATCH
—
Days
—
Hrs
—
Min
—
Sec
Pre-orders open
June 23
You're on the list. We'll email you when preorders open.
Something went wrong. Please try again.
47mm
Diameter
18mm
Install Depth
42mm
Mounting hole
1.3"
IPS display
1
Cable
Up Close
See it from every angle
Compatibility
DSP Models supported by Cuore One
Cuore One is designed for use with select Audiotec Fischer ACO-platform DSPs. Connection type and required accessories depend on the specific DSP model.
Adapter required
Your DSP uses a Control Input connector. Add the DGA Bridge cable — it connects between the included cable and your DSP.
Requires DGA Bridge Cable — €45,00
View supported DSP models (0)
Not sure which port your DSP has? Search your model:
Cuore One is independently developed by DGA and is not an Audiotec Fischer product. Model names are listed only to identify compatible DSPs. This is not an official Audiotec Fischer compatibility list.
Three modes, total control
Turn to adjust. Press to cycle volume banks. Hold for the menu. Double-press for voltage. Triple-press for Bluetooth.
One knob, everything.
* Requires a compatible Bluetooth extension card installed in the DSP

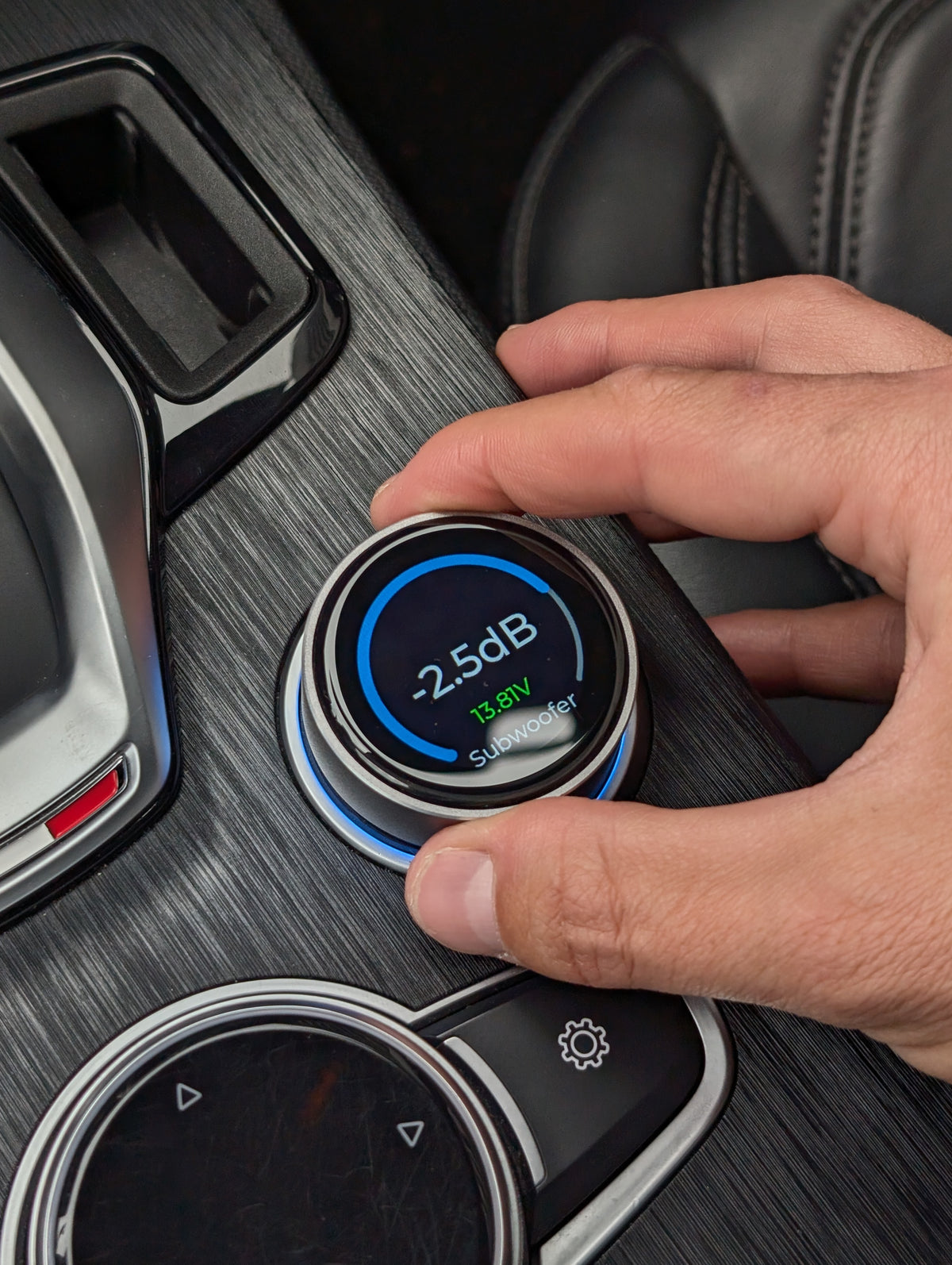

Up to 4 independent volume banks
Assign up to four independent volume banks — each with its own level, color, and display. Cycle through them with a single press.
Available banks
Master
Main system volume
Subwoofer
Independent sub level
Rear fill
Rear speaker control
Digital in
Digital input level
HEC / AUX
Auxiliary input level
Bank settings
Control range
60 dB
24 dB
12 dB
Selectable per your preference
Step size
1.0 dB
0.5 dB
Fine or standard increments
Startup limit
Off
–15 dB
–30 dB
–45 dB
Safe power-on protection
Display format
dB
%
Your choice of readout
Bank color
RGB
Reflected on display bar & ambient ring
Complete Feature Set
Everything you need, nothing you don't
Precision Rotary Encoder
Clicky encoder with tactile detents for precise adjustment — even without looking.
10 Sound Presets
Fast preset switching. Browse up to 10 DSP sound setups and switch with click-to-confirm or automatic apply.
Ambient Light Ring
Continuous RGB backlight glows softly from behind the knob. Fixed color or automatically color-coded per volume bank. Configurable brightness.
Voltage Monitor
High-precision real-time voltage monitoring with a live line chart. Optional voltage readout on volume screens, plus absolute min/max voltage capture.
Mobile App
Dedicated iOS & Android app for controller personalization, custom user preferences, and OTA firmware updates.
Single-cable connection
Single 5 m cable connection to the DSP's SCP port. Fast install with one-time DSP PC-Tool setup.
Source Switching
Switch between audio input sources directly from the controller. Configure available sources in your DSP and toggle between them on the fly.
Tone Control
Direct bass and treble adjustment from the knob via DSP-configured low shelf and high shelf filters.
Bluetooth media controls
Bluetooth media controls with compatible DSP BT extension cards. Play, pause, skip tracks, and enter pairing mode — all from the controller.

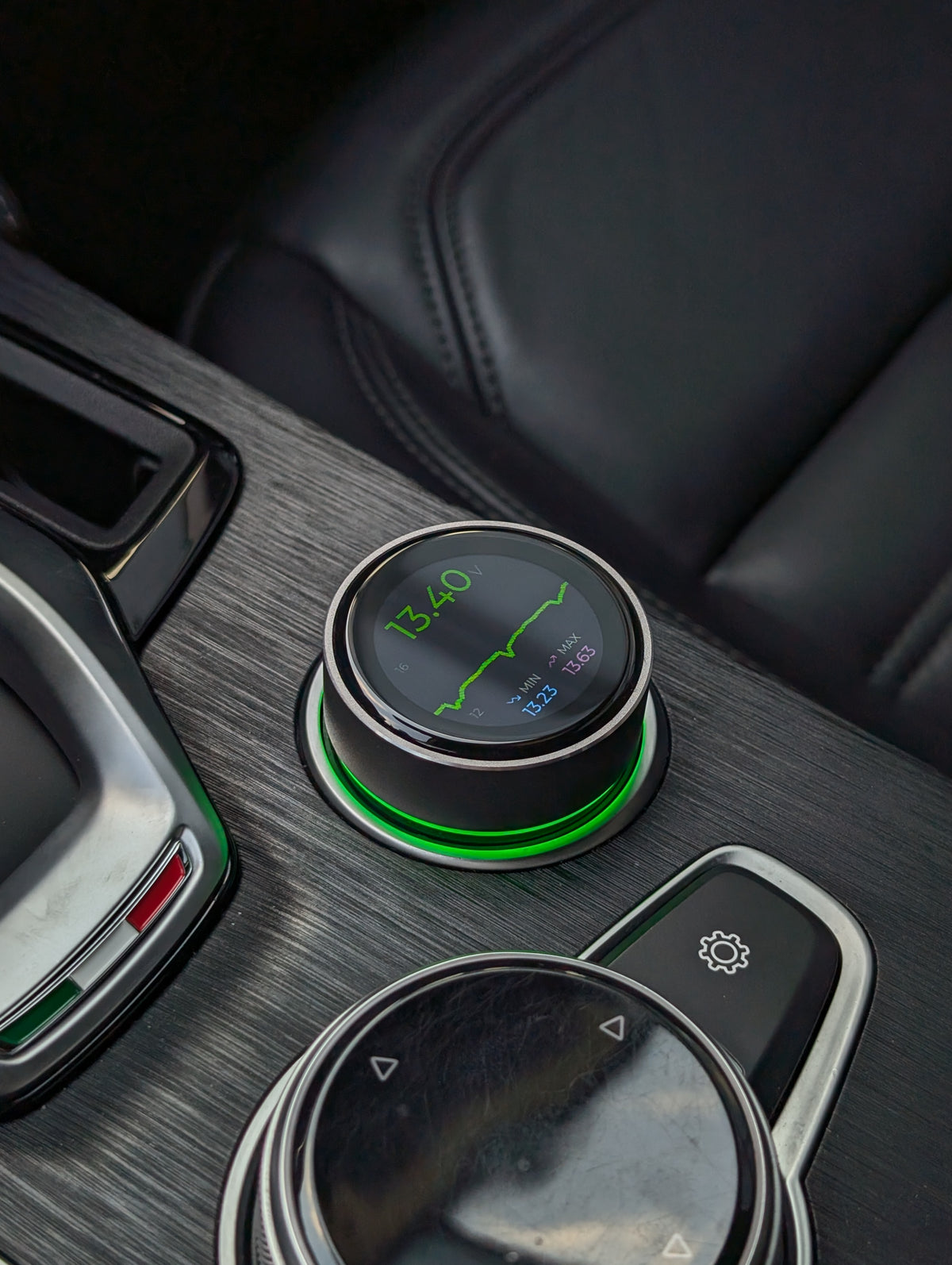

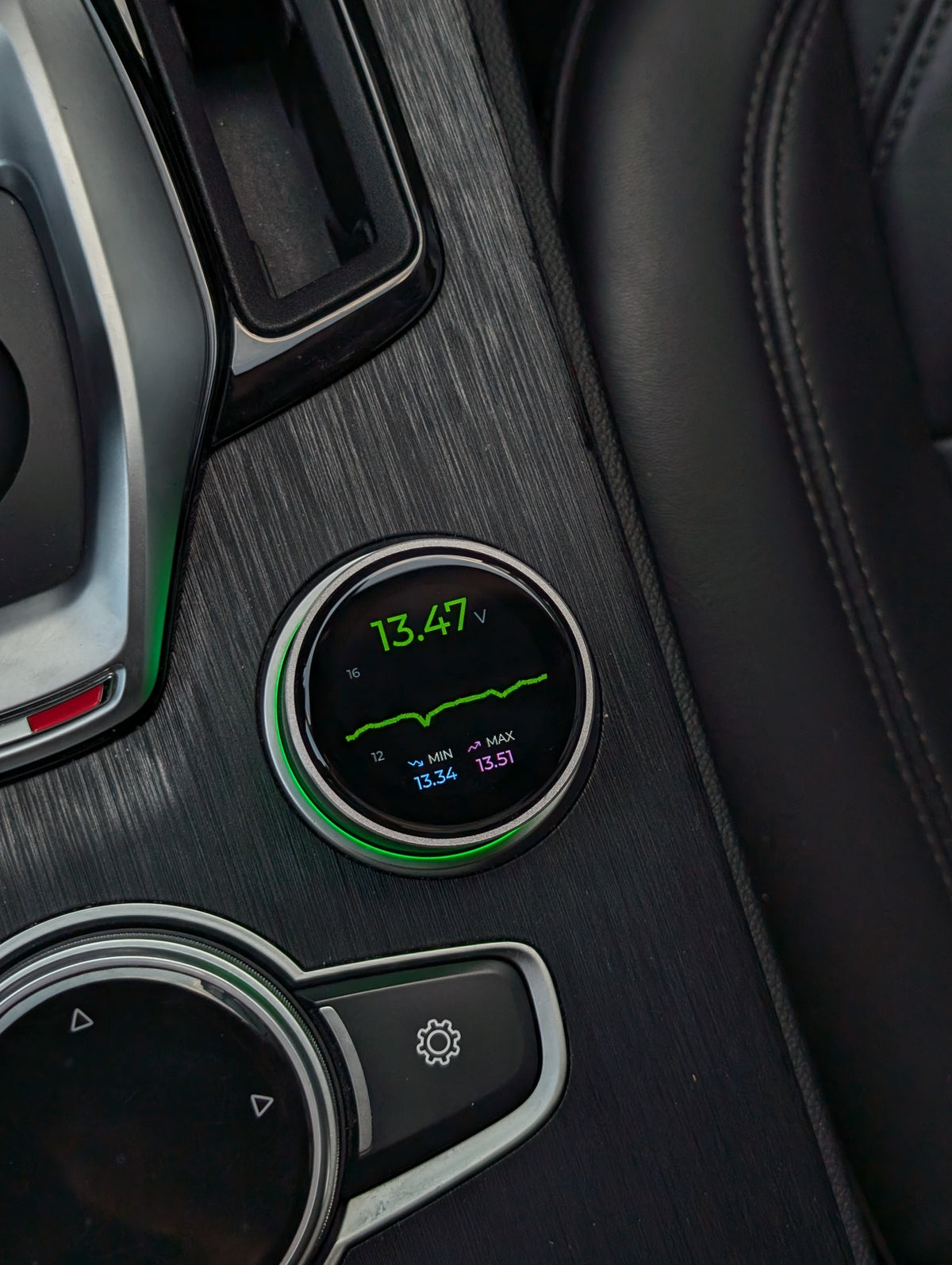

High-Precision Voltage Monitor
Your electrical system, in real time
More than a simple voltage readout — Cuore One samples and displays system voltage changes in real time. Helps you monitor electrical behavior during playback with fast voltage sampling and min/max voltage capture.
14.20
V
NORMAL
MIN
—
MAX
—
15V
14V
13V
12V
11V
250 samples/sec
Ultra-fast sampling captures transients other meters miss
Valley hold
Captures the lowest voltage dip during monitoring session
Peak hold
Captures the highest voltage peak during monitoring session
Resettable
Clear min/max to start a fresh monitoring session
Ambient Light System
Light that means something
The ambient ring isn't just decoration — it's functional feedback that adapts to what you're doing.
Match DSP
Ring color follows the active volume bank — switch banks and the light follows.
Brightness adjustable or completely off via the DGA Control app
Custom
Pick any RGB color from the DGA Control app. Overrides the DSP-matched color.
Brightness adjustable or completely off via the DGA Control app
Voltage status
On the voltage screen, the ring becomes a live status indicator.
Brightness adjustable or completely off via the DGA Control app
Built for the driver
Designed to live in your car
Every interaction was shaped around one constraint — you're driving. The size, the feel, and the entire shortcut system exist so you stay focused on the road.
47mm comfortable grip
The anodized aluminum ring gives your fingertips an immediate tactile landmark — you know you're on the knob before you turn it.
Every click is a step
Mechanical detents let you feel each volume increment. No guessing, no overshoot — precise adjustment by touch alone while your eyes stay on the road.
Shortcut muscle memory
Press, hold, double-press, triple-press — four gestures cover volume banks, menu, voltage, and Bluetooth media controls. Learn them once, use them without thinking.
Engineered for automotive conditions
ABS polymer and anodized aluminum chosen for thermal stability and longevity. Designed and tested for the temperature swings, vibration, and daily wear that come with permanent car installation.
Mobile App
Personalize & keep it updated
Ambient light ring
Control the resting glow around the knob — toggle on or off, match the color to the active volume bank or pick your own, and set brightness independently or sync it with the DSP.
Display preferences
Choose how volume is shown on the display — decibels or percentage. Adjust screen brightness separately to suit your preference.
Voltage monitor
Show a real-time supply voltage overlay directly on the display — always visible at a glance.
OTA firmware updates
New features and improvements delivered directly to your controller.
Installation
Three steps. That's it.
Run the cable
Drill a 42 mm hole and route the included 5 m cable to your DSP. Connect it — that side is done.
Snap in
Plug the cable into the controller and press it into place. Just 18 mm of depth needed.
Configure
Complete the required controller setup in DSP PC-Tool. Personalize display and lighting in the DGA Control app.
Setup note: Supported DSPs require DSP PC-Tool controller setup using the "CONDUCTOR" option. Cuore One is independently developed by DGA, is not a CONDUCTOR product, and is not manufactured, authorized, endorsed, supported, or affiliated with Audiotec Fischer GmbH.
Full technical specifications
| Compatibility | Listed Audiotec Fischer ACO-platform DSPs |
| Display | 1.3" IPS |
| Ambient ring | True RGB backlight, continuous glow |
| Control | Detented rotary encoder with press-click |
| Housing | ABS base, anodized aluminum ring |
| Cable length | 5 m |
| Interface | SCP / Control Input via optional DGA Bridge cable |
| Dimensions | Ø 47 × 38.38 mm |
| Installation depth | 18 mm |
| Mounting hole | Ø 42 mm recommended |
| Volume banks | Up to 4 independent |
| Volume range | 60 / 24 / 12 dB selectable |
| Step size | 1 dB or 0.5 dB |
| Startup vol limit | Disabled / –15 / –30 / –45 dB |
| Sound presets | Up to 10 |
| Sources | Main / Digital / HEC 1 / HEC 2 (only with BRAX DSP) |
| Tone control | Low-shelf & high-shelf (bass/treble) |
| Bluetooth | Media controls + pairing (requires compatible BT extension card) |
| App | iOS & Android |
| Firmware | OTA via mobile app |
| Configuration | Requires compatible controller setting in DSP PC-Tool |
Take control.
The DSP controller that should have existed from day one.
€449,00
Pre-orders open June 23
